Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Door Handle Helix 200 Stripe - Black
Beslag Design

Door Handle Helix 200 Stripe - Black

Available varieties
Door Handle Helix 200 Stripe - Antique Bronze/bilder/artiklar/liten/dht-stripe-antik_S.jpg?m=1637314816
Door Handle Helix 200 Stripe - Brass/bilder/artiklar/liten/dht-stripe-massing_S.jpg?m=1637314986
Door Handle Helix 200 Stripe - Stainless Steel Finish/bilder/artiklar/liten/dht-stripe-rostfritt_S.jpg?m=1637315045
95.20 - €106.08
Assembly guide
Select Model
European Standard Modular Lock (Lock case 565) Scandinavian Standard (Lock case 2014)

BUY TOGETHER WITH

Hard to decide?
Order your favorites and test which products fit best.
You always have 60 days to return your products.

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:
    • Description

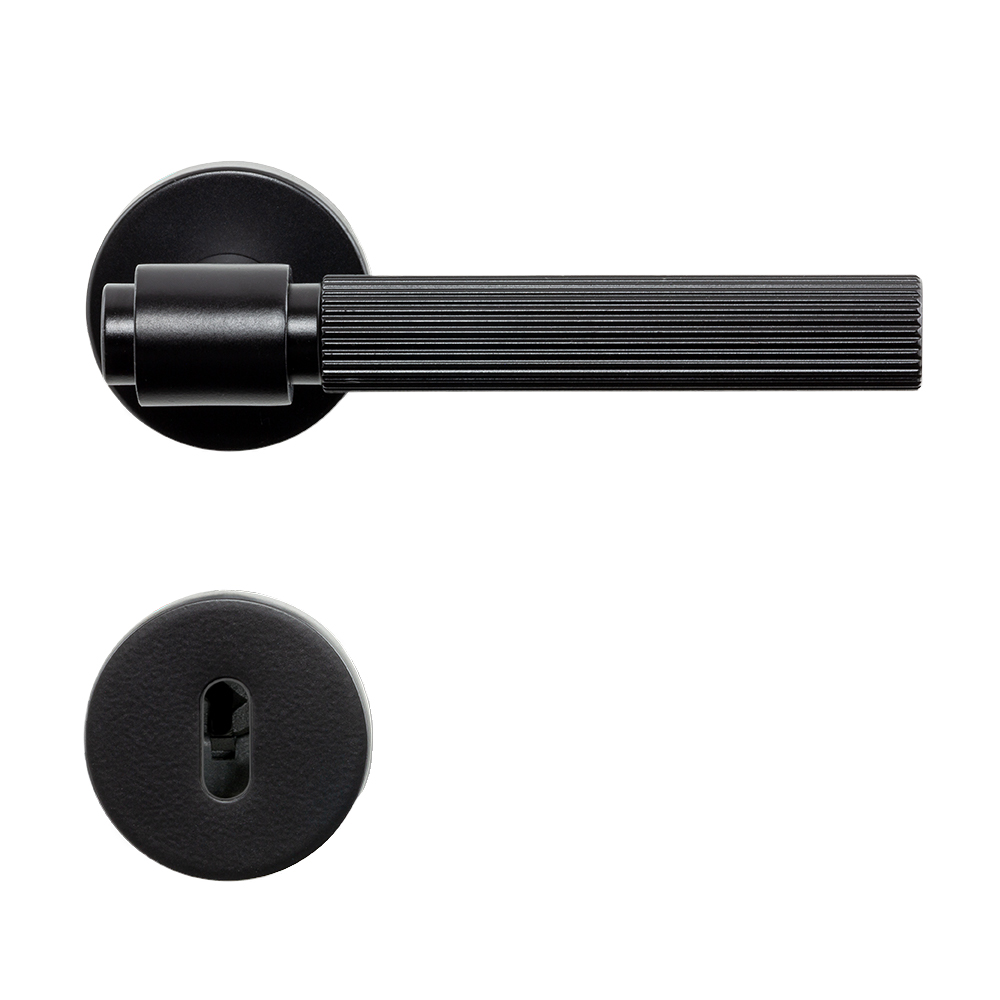

    • Door handle Helix Stripe in black design has a ribbed surface with stripes that stand out with an industrial design. The door handle has a resilient spring, which means that the handle always returns to its basic position. Perfect for all doors indoors. Feel free to match the door handle with a door stop or kitchen handle in the same series to get a whole in the interior of the home.

      The handle is available in four different designs; antique bronze, matte black, brass and stainless steel finish. Standard key plate, conversion kit and complete assembly kit are included.

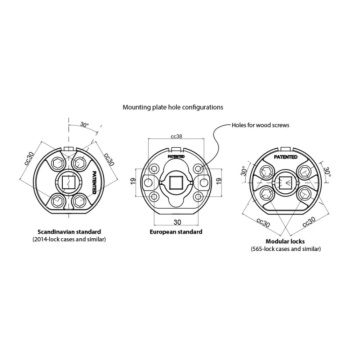

      The door handle Helix fits different lock boxes, choose between Scandinavian standard, European standard or modular lock that provides doors with lock case 565 or equivalent. Our door handles for modular locks fit a door leaf thickness of 35-55mm.

      Scandinavian standard (lock case 2014 or similar) and European standard fit doors that have a door leaf thickness of 35-48mm. Standard key plate, conversion kit, and complete mounting kit are included.

      All our door handles are delivered in pairs complete for one door.

      Scandinavian standard: Sweden, Denmark, Norway, Finland.
      European standard: other countries in Europe. (c/c 38mm)

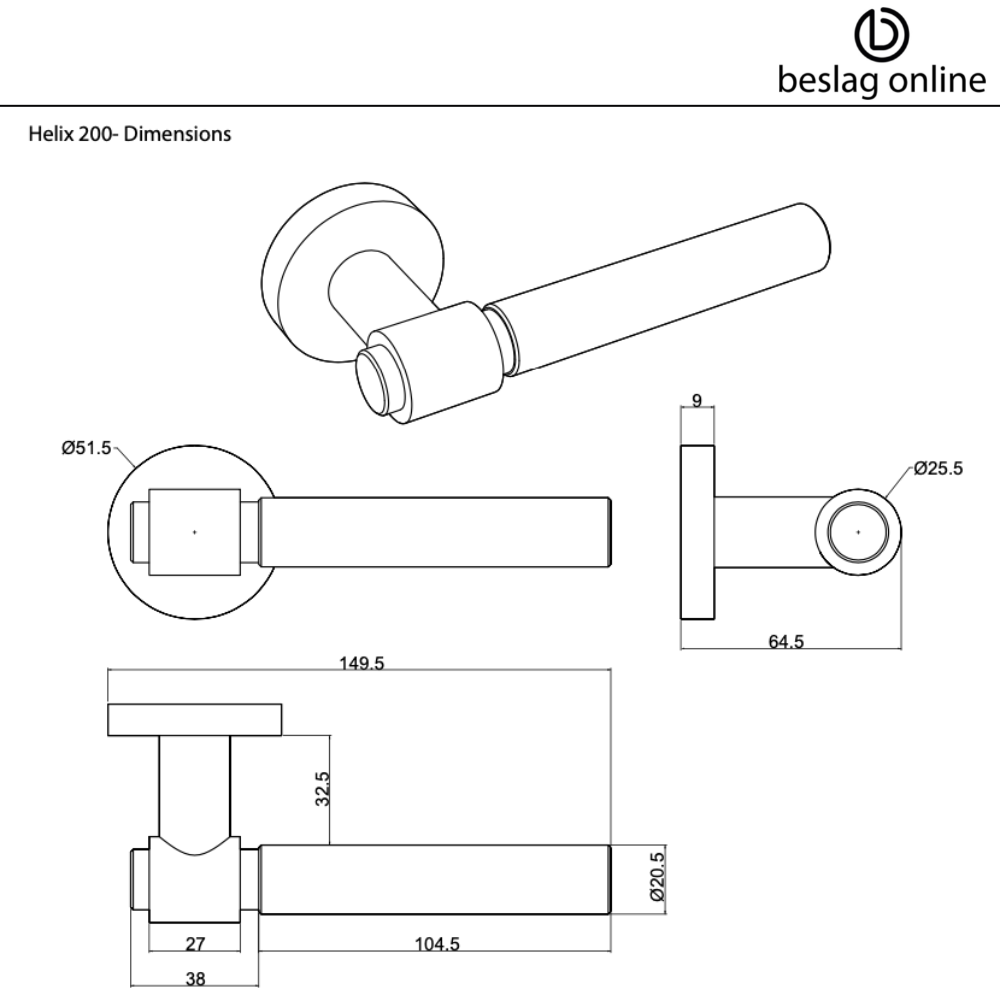

    • Dimensions & assembly
    • Article nr: dht-stripe-svart
      Diameter Ø: 52 mm
      Length: 150 mm
      Width: 52 mm
      Depth: 65 mm
      Material: Aluminum
      Model: Door Handle
      Form: Knurled
      Style: Modern
      Screws included: Complete with mounting kit
      Other information: Door leaf thickness 35-48mm
      Brand: Beslag Design

      Installation of door handles
      Install the door handle using the included mounting kit.



      1. Center the square bar in the lock.
      2. Place the mounting washers on the square bar, making sure that the flat parts of the mounting washers are positioned down towards the floor. Then screw them in with the included screw and sleeve.
      3. Take out the square rod and use it as a tool to pry out the guide washers that sit in the center of the mounting washers.
      4. Place the square bar in the lock, center it and check that the milled groove in the square bar is horizontal. Then press the handle firmly so that it clicks into the tab on the top of the mounting washers.
      5. Screw in the stop screws using an insect wrench and finish by tightening them. A total of four.
      6. Now your door handles are mounted and ready to use.

      Installation of key plate
      Install the key plate using the included mounting kit.





      1. Place the mounting washers on the square bar, making sure that the flat parts of the mounting washers are positioned down against the floor. Then screw them in with the included screw and sleeve.
      2. Then press the key plate firmly so that it clicks into the tab on the top of the mounting washers.
      3. Screw in the stop screws using an insect wrench and finish by tightening them. One screw on each side of the door.



    • More info & care advice

    • Brand - Beslag Design
      Beslag Online is part of Beslag Design, which has more than 50 years of experience in the areas of fittings and interior products. Beslag Design started its journey in 1972 and today has Sweden's widest range of handles and knobs for both kitchens, bathrooms, wardrobes and furniture. With over 1,000 different models to choose from, there really is something for every style. Beslag Design are known for their high quality and breadth of range that captures the latest trends.
      "Details that make the whole"

      Care advice

      Wipe with a clean slightly damp cloth. Avoid detergents as they may contain chemicals that affect the surface negatively. Can also be cleaned with a microfiber cloth.
