Dimmer Capsens FW - 12/24V - Black

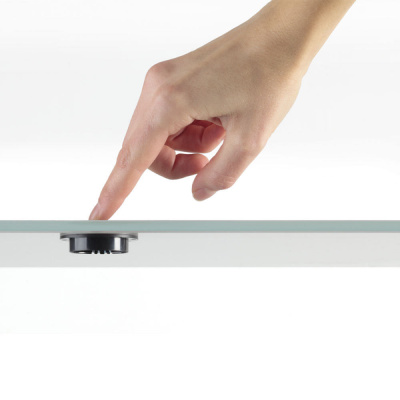

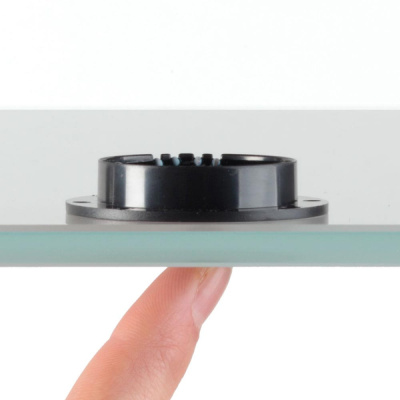

Capsens FW is a dimmable electronic switch intended for concealed mounting on the back of wood, plastic or glass (not metal). Activated by simply touching the surface on which the sensor is mounted on, for example, a worktop. Install the Dimmer Caps before connection for correct functionality.

• Safety function: Automatically switches off the light after 18 hours.

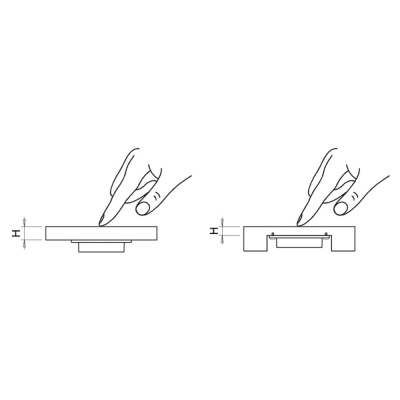

• Max. material thickness: glass 12 mm, plastic 20 mm, wood 30 mm.

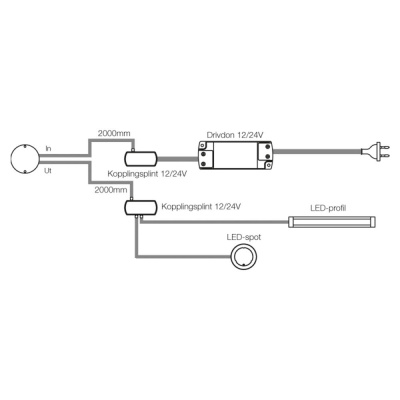

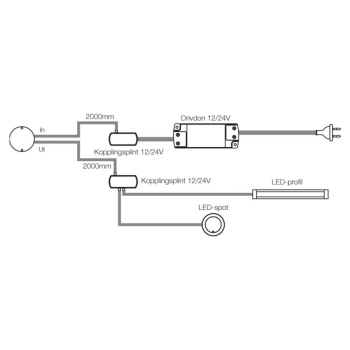

• Incl. 2000 mm connection cable and terminal block with 12 connections, screw, double-sided adhesive tape and a sticker with on/off symbol.



Show more

Show less

• Specifications

• Connection type:	Micro 12/ Micro 24

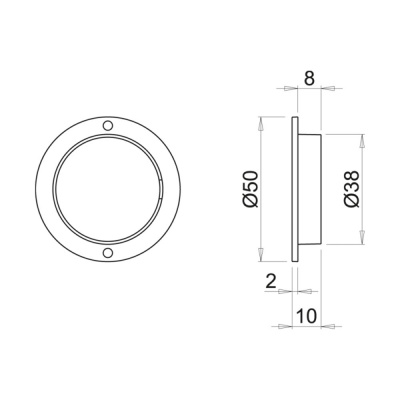

  Diameter:	50 mm
  Recessed Depth:	8 mm
  Recessed Diameter:	38 mm
  Voltage (V):	12/24 V
  Depth:	10 mm
  Effect (W):	Max: 30/60 W
  Brand:	Beslag Design
